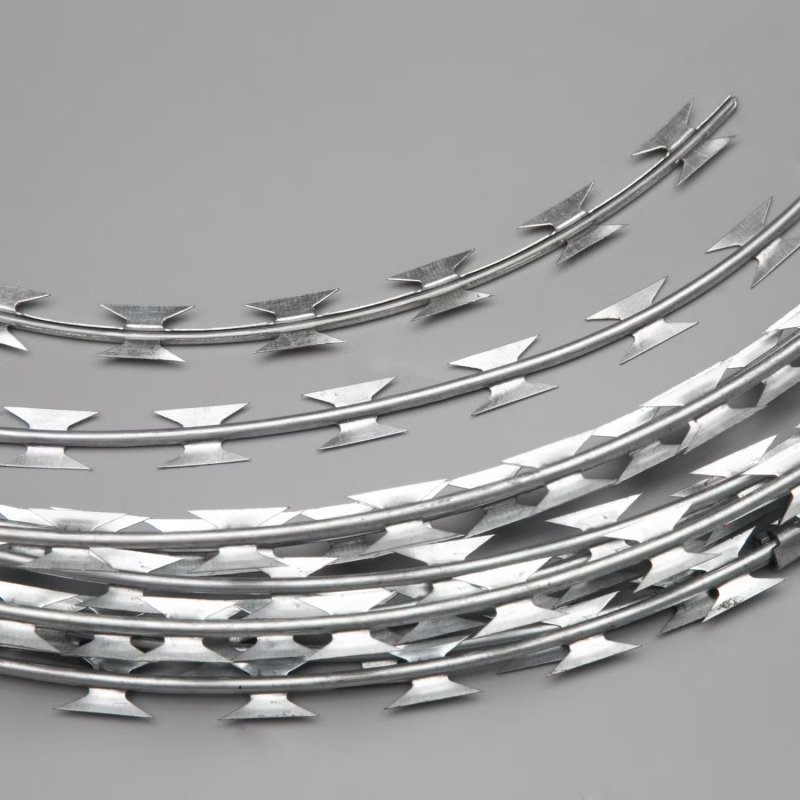

Double concertina razor wire is a new product. It is used as security fencing and isolation for gardens, residences, military sites and other sites requiring high security.
| Reference Number | Blade Style | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
|---|---|---|---|---|---|---|
| BTO-10 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 10 ± 1 | 13 ± 1 | 26 ± 1 |
| BTO-12 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 12 ± 1 | 15 ± 1 | 26 ± 1 |
| BTO-18 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 18 ± 1 | 15 ± 1 | 33 ± 1 |
| BTO-22 |  |
0.5 ± 0.05 | 2.5 ± 0.1 | 22 ± 1 | 15 ± 1 | 34 ± 1 |
| BTO-28 |  |
0.5 ± 0.05 | 2.5 | 28 | 15 | 45 ± 1 |
| BTO-30 |  |
0.5 ± 0.05 | 2.5 | 30 | 18 | 45 ± 1 |
| CBT-60 |  |
0.6 ± 0.05 | 2.5 ± 0.1 | 60 ± 2 | 32 ± 1 | 100 ± 2 |
| CBT-65 |  |
0.6 ± 0.05 | 2.5 ± 0.1 | 65 ± 2 | 21 ± 1 | 100 ± 2 |
Barbed Tape Concertina (CBT); Barbed Tape Obstacle (BTO).
Standard materials are either galvanized or stainless steel.
Note: the length and the diameter of the coil can be designed according to the customers’ need.
